Custom Online
Laser Cutting Services
Precision sheet metal laser cutting for prototypes and production parts. DFocus PROTOTYPE delivers high-quality cut parts in as fast as 5 days using advanced Fiber and CO2 laser technology.
- Fast Turnaround (Ship in ~5 Days)
- Metals (Steel, Aluminum) & Plastics (Acrylic)

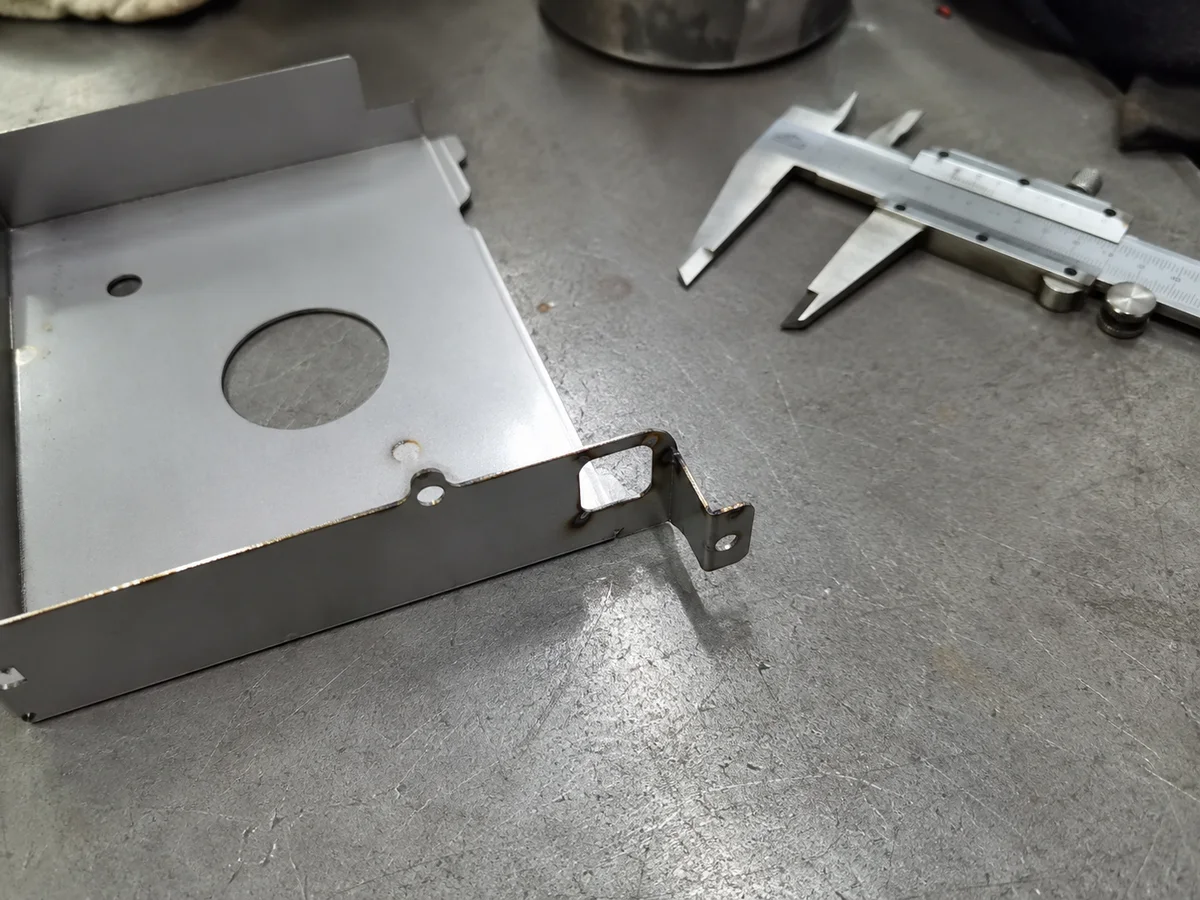

- Tight Tolerances (±0.1 mm) & Clean Edges
Fiber + CO2 laser. Steel up to 20mm, acrylic up to 30mm.
Comprehensive Laser Solutions
From sheet metal fabrication to intricate acrylic designs, we use the right laser source for your material.

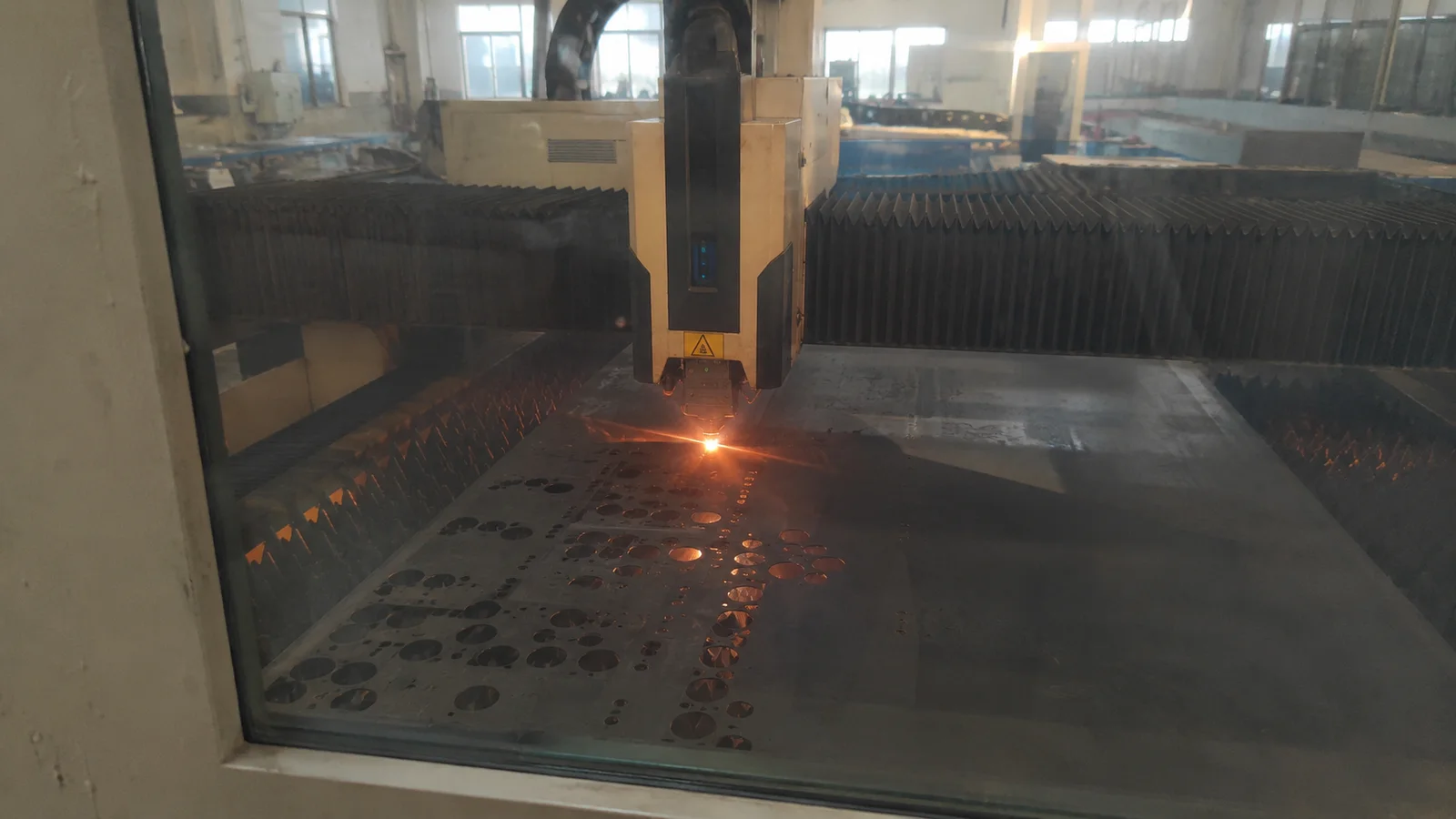

Metal Laser Cutting (Fiber)
High-power fiber lasers capable of cutting stainless steel, carbon steel, aluminum, copper, and brass. Ideal for brackets, enclosures, and mechanical parts up to 20mm thick.
Non-Metal Laser Cutting (CO2)
Precision CO2 lasers for cutting acrylic, wood, Delrin, and other plastics. Delivers flame-polished edges on acrylic and intricate detailing for display components.
Supported Materials
Steel Alloys
- Stainless Steel (304, 316)
- Mild Steel (Carbon Steel)
- Spring Steel
- Tool Steel
Non-Ferrous Metals
- Aluminum (6061, 5052)
- Copper
- Brass
- Titanium
Plastics
- Acrylic (PMMA)
- Delrin (POM)
- ABS (Thin sheet)
- Polycarbonate
Others
- Wood / Plywood
- Cardboard
- Rubber
- Foam
Technical Capabilities
| Feature | Fiber Laser (Metal) | CO2 Laser (Plastic) |
|---|---|---|
| Max Thickness | 20mm (Steel) | 30mm (Acrylic) |
| Tolerance | ±0.05 mm | ±0.15 mm |
| Min Hole Size | 0.5 x Thickness | 1.0 x Thickness |
| Kerf Width | 0.1 - 0.2 mm | 0.3 - 0.5 mm |
| Edge Finish | Oxide-free (N2 Cut) | Flame Polished |
Alternatives to Laser Cutting
For thicker materials or specific requirements, we also offer:
Waterjet Cutting
Cuts through thick metal plates (up to 4 inches) and heat-sensitive materials without thermal distortion.
Plasma Cutting
Cost-effective for cutting thick conductive metals where edge finish tolerances are less critical.
Laser Cutting FAQ
What is the thickest material you can laser cut?
Fiber lasers can cut metals up to 20-30mm thick in some cases, but 20mm is a safe standard maximum for quality edges. CO2 lasers can cut plastics and wood up to 30mm thick.
How fast can I get laser cut parts?
Simple flat parts can be cut and shipped in as little as 3-5 days. Complex projects with bending or welding post-processing will take longer.
What file formats do you accept?
For laser cutting, 2D vector files like DXF or DWG are preferred. However, we can also work from 3D CAD files (STEP, IGES, SLDPRT) and unfold them for you.
Get Your Parts In Days
Upload your DXF or STEP files for an instant laser cutting quote.
Get Laser Cutting Quote
